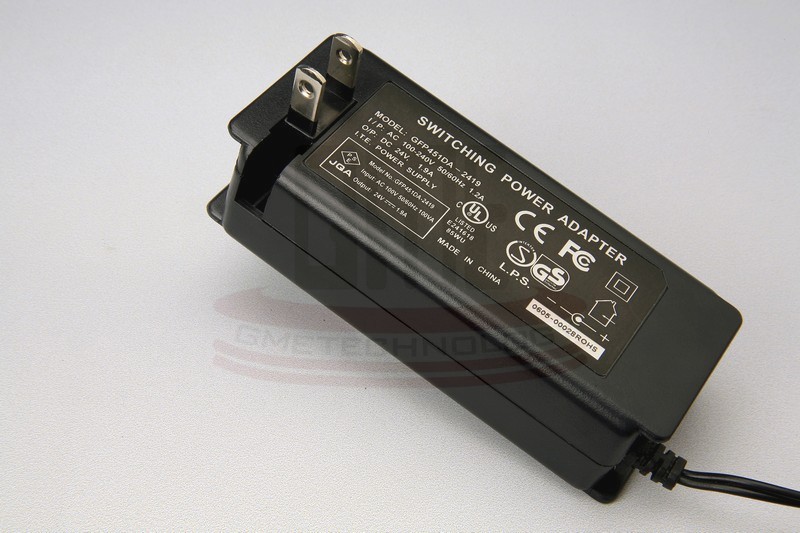

Power supply adapter 旋转型 45W
GFP451X
Design AC Power supply, charger, DC power supply and switching power supply, complete procedure and quality assurance system from customer requirment,design, development,mass production and customer service.
Contact
Products Details
48W (48E series) 产品描述Product Description
Model No.
    型号 		Typical   output
    典型的输出
    		Output V
    输出电压 		Output A
    输出电流
GME48E-xxxyyyFzR
    GME48E-xxxyyyFXR
    GME48E-xxxyyyFDR 		9V,5.4A
    12V,3.8A
    15V,3A
    24V,2A 		6-10V
    12-16V
    18-24V 		0.01-4.5A
    0.01-4A
    0.01-2.66A
GME48E-yyywwwFzR,  FXR 或FDR.   (yyy, www and z 是变量)
    yyy=060-100或120-160或180-240, 表示额定输出电压6.0VDC ~ 10VDC或
          12.0VDC ~ 16.0VDC或18.0VDC   ~ 24.0VDC;
    www=001-450，表示额定输出电流从0.01A到4.5A;
    z=U,G,B,K,C,J,A,Q,R, z,E, N或W，代表不同国家的插头;
        U表示美国插头，g表示欧洲插头，B表示英国插头，K表示韩国插头，C表示中国插头，
        J表示日本插头，A表示澳大利亚插头，Q表示印度插头，R表示阿根廷插头，z表示巴西插头，
       E表示俄罗斯插头，N表示南非插头，W表示台湾插头。
    XR= 表示各种可互换插头类型
    DR= 表示台式型外壳
GME48E-yyywwwFDR, FDR, FUL, FzR or FXR.   ( yyy, www and z are variables )
    yyy=050-075 or 090-150 or 180-240, represent for the rated output voltage   from
           5.0VDC to 7.5VDC or 9.0VDC to   15.0VDC or 18.0VDC to 24.0VDC;
    www=001-350, represent for the rated output current from 0.01A to   3.5A;
    z=U,G,B,K,C,J,A,Q，R,Z,E, N   or W, stands for different national plug;
        U means USA plug,G means European   plug, B means Britain plug, K means Korea plug,
        C means Chinese plug,J means   Japanese plug, A means Australia plug,Q means India plug,
        R means Argentina plug,Z means   Brazil plug,E means Russia plug,
        N means South Africa plug,  W means Taiwan plug.
    XR= Represent the various interchangeable plug type
    DR= Represent the Desk-top type
Working Environment   /  工作环境
ITEM   / 名称 MIN   / 最小值 MAX   /最大值
OPERATING   TEMPERATURE
    运行温度 		0℃ 45℃
STORAGE   TEMPERATURE
    储存温度 		-20℃ 85℃
OPERATING   HUMIDITY
    运行湿度 		5%RH 90%RH
STORAGE   HUMIDITY
    储存湿度 		5%RH 90%RH
Specifications   /  技术参数
ITEM  / 名称 MIN   / 最小值 MAX   /最大值
NORMAL   AC INPUT VOLTAGE
    常规AC输入电压 		100Vac 240Vac
AC   INPUT VOLTAGE RANGE
    AC输入电压范围  		90Vac 264Vac
AC   INPUT FREQUENCY
    AC输入频率  		47Hz  63Hz
AC   INPUT CURRENT
    AC输入电流
1200mA
AVERAGE   EFFICIENCY
    效率 		VI
SAFETY   STANDARD:
    安全标准： 		IEC/UL/EN/62368/(GB4943/GB8898)
CERTIFICATE:
    认证： 		ETL/UL,FCC,GS,CE/EMC,UKCA,PSE,RCM,
    CCC,BIS,KC,NOM,BSMI
Size /  尺寸
ITEM  / 名称 L(长）*W(宽)*H(高)MM
GME48E-yyywwwFUR
    US Wall-mount/美规墙插式 		97(L)X45(W)X35(H)mm
GME48E-yyywwwFGR
    EU Wall-mount/欧规墙插式 		97(L)X45(W)X35(H)mm
GME48E-yyywwwFKR
    UK Wall-mount/英规墙插式 		96.9(L)X48(W)X34.5(H)mm
GME48E-yyywwwFUR
    SAA Wall-mount/澳规墙插式 		97(L)X45(W)X35(H)mm
GME48E-yyywwwFXR
    Desktop/桌面式 		96.8(L)X44.8(W)X29.3(H)mm
GME48E-yyywwwFXR
    Interchangeable/可互换 		97(L)X45(W)X35(H)mm
